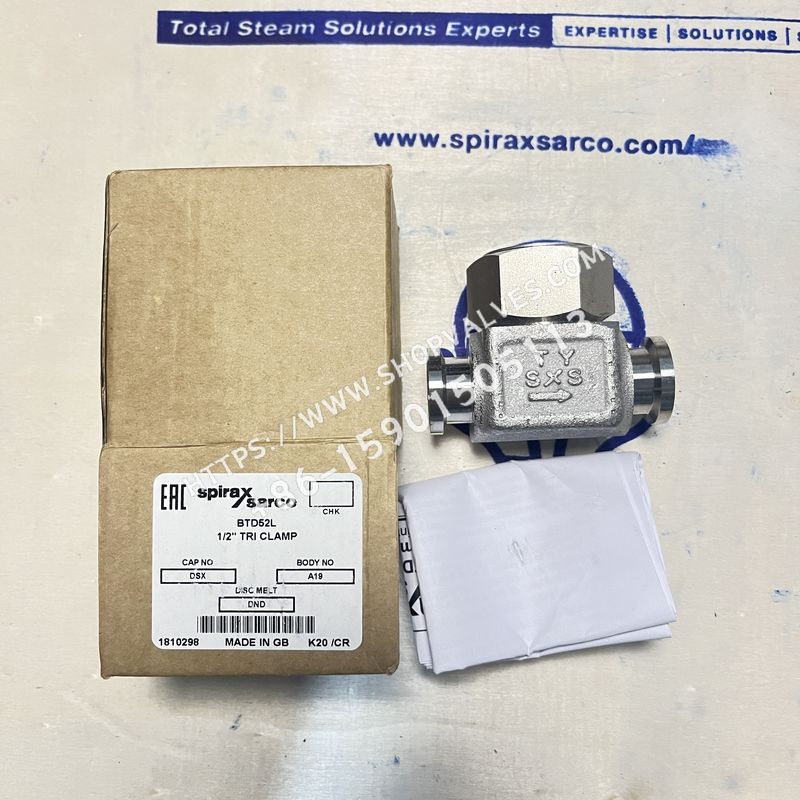

Spirax Sarco Spirax Sarco BTD52L Thermodynamic Steam Trap

Spirax Sarco BTD52L Thermodynamic Steam Trap in 316L Stainless Steel for Steam Main Traps in Clean Steam Systems. Standards and Certificates This product is fully compliant with the European Pressure Equipment Directive 2014/68/EU and can be supplied with a certificate EN 10204 3.1 (please specify when ordering if a certificate is required). Sizes and pipe connections ¼", 3/8", ½" BSP or NPT threaded connections. ½" OD x 16 swg (0.065") wall thickness tube end connections. DIN 11850 (series1) pipe ends: 12mm OD x 1.0mm wall thickness (DN 10), 18mm OD x 1.0mm wall thickness (DN 15). ISO 1127 (series1) pipe ends: 17.2mm OD x 1.6mm wall thickness (DN 10), 21.3mm OD x 1.6mm wall thickness (DN 15). ½" sanitary clamp connection (DN15). selectable The heat shield protects the trap from excessive heat dissipation caused by severe weather conditions such as rain, wind, and low temperatures. Pressure/Temperature Limits sports event particulars Valve body design conditions PN16 PMA Maximum Allowable Pressure 16 bar g @ 50 °C TMA Maximum Allowable Temperature 450 °C @ 8 bar g Minimum permissible temperature 0 °C PMO Maximum Working Pressure under Saturated Steam 10 bar g @ 220 °C TMO Maximum Operating Temperature 450 °C @ 8 bar g Minimum working temperature 0 °C (lower operating temperatures, consult Spirax Sarco) PMOB Maximum working back pressure not to exceed 80% of upstream pressure Minimum working differential pressure 0.25 bar g Design maximum cold hydraulic test pressure 24 bar g material (that sth is made of) Item Part material (that sth is made of) 1 valve body Austenitic stainless steel AISI 316L 2 bonnet Austenitic stainless steel AISI 316L 3 compact disc Austenitic stainless steel AISI 316L 4 Isolation cover (optional) aluminum (chemistry) weights caliber Sanitary clamps/BSP or NPT pipe end All calibers 0.45kg 0.55kg engine displacement (volume of air fuel mixture drawn in during one cycle) Displacement charts: (charts are omitted here; the original article has corresponding charts showing condensate volumes at different pressure differentials) Security information, installation and maintenance For detailed information, refer to the Installation and Maintenance Guide (IM-P181-03) supplied with the product. It is best to install horizontally with a section of drop pipe in front of the trap. The BTD52L can also be installed vertically where it is freezing or where horizontal installation is not possible, but this may affect its service life. Shut-off valves should be provided at the front and rear of the trap for ease of maintenance and replacement. If the trap discharges into a closed recovery system, a check valve should be provided downstream of the trap to prevent fluid return. deal with This product is recyclable and does not cause environmental problems when disposed of properly. Ordering Instructions Example: 1 - Spirax Sarco BTD52L Thermodynamic Steam Trap, 316L Stainless Steel Body, Pipe End Connection 17.2mm OD x 1.6mm Wall Thickness (ISO 1127, Series 1). Spare Parts Spare parts available: disks, heat shields. Ordering Spare Parts: Please order spare parts according to the above instructions, indicating the trap type and size. Example: 1-Disc assembly for Spirax Sarco BTD52L ½" BSP thermodynamic steam trap. Technical Data Download TI-P181-01-Chinese.pdf
