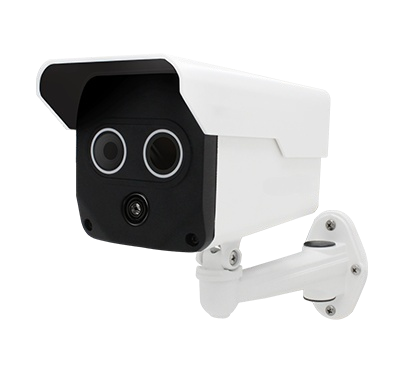

LY-TD120 Dual Vision Thermal Camera

Description Product Size Dimensions: 97mm x 99mm x 200mm Key Features Incorporates an uncooled focal plane detector with sensitivity surpassing 50mK. Utilizes HyPix super-resolution display technology, delivering thermal image quality comparable to 640×480 resolution. Employs neural net and front-end intelligent algorithms to alleviate backend server load. Supports fusion of visual and thermal images, enhancing clarity and intuitiveness of target temperature display. Offers multiple temperature measurement methods including point, line, area, and full screen, with support for regional temperature measurement shielding. Provides intelligent warnings for abnormal temperatures and fire alarms. Enables intelligent analysis and alarms for tripwire, cross-border, and intrusion detection in low-light conditions. Offers a selection of 18 palettes such as black heat, white heat, iron red, and rainbow. Features a clear 4MP visual camera for high-quality imagery. Supports H264 and H265 video compression algorithms for efficient data handling. Compatible with protocols including RTSP, ONVIF, GB/T 28181, MODBUS, and others. Includes SDK support for secondary development and customization. Achieves an IP67 rating with lightning and surge protection, ensuring reliability in outdoor environments. LY-TD120 Dual Vision Thermal Camera Product Interface AV analog video output RS485 serial port Alarm input channel Alarm output channel DC12V power interface Audio input Audio Output RJ45 network interface IR illumination Visual camera lens Thermal camera lens Applications Remote Surveillance Hazardous Environments Monitoring Critical Infrastructure Protection High-Security Zones Industrial Process Monitoring Application Environments Suitable for indoor and outdoor environments Ideal for areas prone to security and fire hazards Used in perimeters, warehouses, charging carports, indoor parking lots, cultural relics, museums, etc. Markets Electric Power Metallurgy Chemical Industry Petroleum Perimeter Security Warehouse Management Night Vision Monitoring Critical Infrastructure Protection Category Specification Thermal Camera Sensor Uncooled Focal Plane Detector Resolution/Pixel Size 256 * 192/12µm Response Waveband 8~14µm NETD $50 mk (@25°C, F#1.0) FOV 55.642.0 Palette 18 types and fusion with visual Visual Camera Sensor 1/2.7 inches CMOS Resolution 2592*1536 Lens Focal Length 3.5mm Low Light Color: 0.01 Lux @(F1.5), Black and White: 0.001Lux @(F1.5, 0 Lux with IR) Image Maximum Resolution 2592*1536 pixels Main Stream Resolution/Frame Rate 640*480@25fps (Thermal) 2592*1536@25fps (Visual) Sub Stream Resolution/Frame Rate 640*480/320*240 (Thermal) D1/CIF (Visual) Temperature Range Thermal Range -20°C to 550°C High gain: -20°C to -150°C Low Gain: )°C to 550°C Temperature Alerts 4 temperature rules (above high, below low, between, beyond), and support area temperature comparison. Accuracy ±5°C or ±5% of the reading (whichever is greater) Functions Measurement Modes Support point, line, area, full screen, and shielded modes, above modes can be set independently. Image Fusion Support visual, thermal image fusion mode, support visual image overlay temperature value mode  Image Flip Support horizontal and vertical flip Smart Functions Fire point & intensity, intrusion alarm, tripwire System Integration and General Specifications Audio Interface 1 in/1 out Communication Interface RJ45 10M/100M self-adaptive; RS485 Storage Interface 1 TF card interface supports up to 128G memory Alarm Interface 1 in/1 out Working Ambient Working temperature -20°C~ 70°C; Working humidity ≤95% non-condensation Power Supply/Consumption DC12V; ≤5W Dimension/Weight (LxWxHmm) 200×97×99 (mm), ≤1kg Installation Instructions Before installation, ensure all equipment and accessories are intact against the packing list. The installation wall should be thick enough to support at least three times the weight of the bracket and the camera. Avoid installing the device in strong-facing light and backlight scenes. Disconnect the power of the thermal imager before installation. Use the provided installation accessories, and prepare additional accessories and tools if needed.
